Overview

Purpose
Message Type
Icon Glyph
File Prefix

Send message to self

Asynchronous

rql_

The images below are taken from the example project.

Local Request Purpose

A Local Request is a message that a Worker can send to itself. You can use Local Request VIs to send a message from a Worker's EHL to its MHL, or between MHL cases of the same Worker.

Local Request usage example

The image below demonstrates the use of a Local Request VI sending a message from the EHL to the MHL of this Worker's QMH, and from the MHL case to another MHL case of the same Worker.

Local Request VI

Data in

Message Priority

Show in Debugger?

Local Request Typedef

Local Request typedefs are created with the same icon and filename as their matching Local Request VI. Their purpose is to provide a custom container (cluster) for the data that will be sent along with the message to the Local Request's MHL case.

Local Request MHL Cases

Local Request Folders

A Local Request VI is required to be wired inline with a Worker's , and can be used from within a Worker's EHL or MHL. This VI will send a message to the Worker's MHL case that has the same name as the Request VI.

Every Local Request VI filename takes the prefix: rql_ (request local). Every Local Request VI icon contains a blue glyph in its bottom-right corner. An example of a Local Request VI is shown below.

Data that will be sent along with the message. By default, this is a that has the same filename as the Local Request VI.

The of the message (default is Normal) can be set to either Low, Normal or High.

When this flag is TRUE, then meta-data about this message will be sent to the .

For every Local Request, a MHL case will be created to receive the message sent by the . Local Request MHL cases will automatically be added to the Worker's case structure section called --- LOCAL API CASES ---. To convert the data sent with the message to its specific data type, a Variant to Data node is required at the beginning of every Local Request MHL case (this will automatically be added to the MHL case when the MHL case is created by the ).

Local Request VIs created by the are added to a Worker's Local API >> Requests folder. Their scope is set to protected because they are designed to be used only from within the Worker that owns them.

priority
Workers Debug Server
Create MHL Case tool
typedef
Create MHL Case tool
Local Request VI
Workers Fundamentals
Main Data Wire
A local request is a message that a Worker can only send to itself
Worker A : Main.vi - Local Request VI example
Worker A : rql_Send String.vi
Worker A : Main.vi - Local Request MHL cases

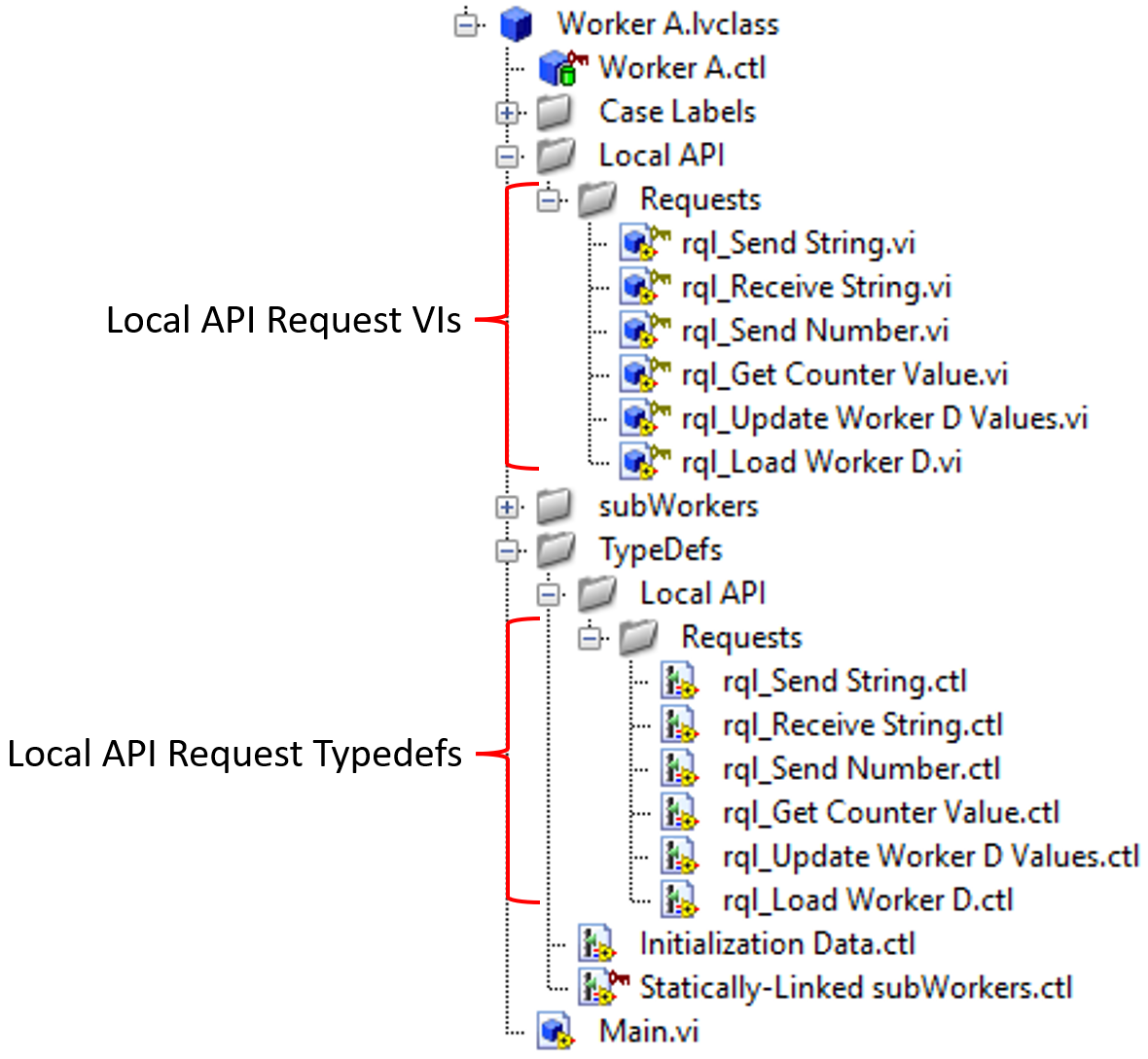

Local Request folder structure within a Worker
